Recently, GNEE successfully exported a new batch of 6063 T5 aluminum angle bars to a client in the United Arab Emirates (UAE). As a direct aluminum angle supplier, we focus on providing reliable materials for construction and industrial projects. This order passed a strict independent third-party inspection before shipment, ensuring all client requirements were fully met.
Looking to buy 6063 T5 aluminum angle bars at factory prices?
Contact our sales team today for a quick quote
6063 T5 Aluminum Angle Specs
Below are the exact details of the delivered goods. We strictly follow the agreed Proforma Invoice.
Chemical composition of 6063 aluminum angle
| Element | Composition (%) |
| Aluminum (Al) | 97.5% – 99.35% |
| Magnesium (Mg) | 0.45% – 0.90% |
| Silicon (Si) | 0.20% – 0.60% |
| Iron (Fe) | 0 – 0.35% |
| Chromium (Cr) | 0 – 0.10% |
| Copper (Cu) | 0 – 0.10% |
| Manganese (Mn) | 0 – 0.10% |
| Titanium (Ti) | 0 – 0.10% |
| Zinc (Zn) | 0 – 0.10% |
| Others(each) | 0-0.05% |
| Others(total) | 0 – 0.15% |
Properties of 6063 aluminum angle
| Temper | Tensile Strength | Yield Strength | Elongation |
| T52 | 25000 psi | 20000 psi | 11% |
| T5 | 27000 psi | 21000 psi | 22% |
| T6 | 35000 psi | 31000 psi | 18% |
6063 aluminum angle introduction
| Name | 6063 aluminum angle |
| Hot selling temper | T52, T5 |
| Equivalent names | EN AW-6063, A96063, AlMg0,7Si, H9 |
| Thickness | 2mm-15mm |
| Height & Width | 10mm-200mm |
| Length | 1-6m or customization |
| Machining | Cutting, punching, drilling, bending, welding, mill, CNC etc. |
| Surface treatment | Anodizing, Powder Coating, Electroplating, etc. |
| Specifications | AMS QQ-A-200/9 ,ASTM B221 |
| Compliant | REACH ,RoHS |
Common Uses of 6063 T5 Aluminum Angle Bar
Why do customers choose 6063 T5 aluminum alloy? This material has good corrosion resistance, which is perfect for the coastal climate in the UAE. It is lightweight but strong enough for structural support. It is also very easy to cut and weld.
In real daily life, 6063 T5 aluminum angle bars are commonly used for:
- Door and window frames
- Support brackets for glass walls
- Indoor partition wall framing
- Solar panel mounting brackets
- Edge protection for walls and furniture
Quality Control

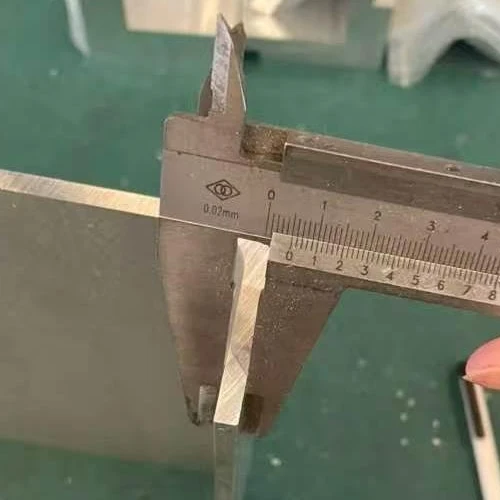

We source standard aluminum billets and control the chemical composition strictly according to ASTM B221 and EN 755 standards. During the extrusion process, our workers use calipers to check the thickness and width online to keep dimensional tolerances accurate.
For this UAE order, the customer requested a third-party inspection. The independent inspector visited our factory and checked the following:
- Dimension verification (thickness, width, length)
- Actual weight confirmation
- Surface condition check (no scratches or oxidation)
- Quantity counting
The inspection was successful, and we provided the final Mill Test Certificate (MTC) to the buyer.
Packaging of GNEE 6063 Aluminum Angle
International shipping takes time, so safe packing is important to prevent physical damage and seawater corrosion. We packed these 31 aluminum angle bars using standard export methods:
- Clear protective film on the aluminum surface to avoid scratches.
- Waterproof kraft paper wrapped outside to block moisture.
- Packed on strong wooden pallets for easy forklift loading and unloading.
- Fastened with reinforced steel straps to prevent moving during transport.
Why Choose GNEE
GNEE has exported aluminum products to over 70 countries. We have rich experience in Middle East markets like the UAE, Saudi Arabia, and Oman. Customers trust us because we do honest business:
- Real Supply Capability: We have stable extrusion lines. We accept small batch orders and support custom sizes.
- Transparent Pricing: We quote and charge based on the actual weight.
- Clear Documents: Full material traceability from raw material to finished product.
Do you have a custom aluminum profile project? Send us your technical drawings, and we will evaluate the processing cost for you within 24 hours.
FAQs
1. What international standards do your aluminum angles meet?
We manufacture according to international standards such as ASTM B221, EN 573 / EN 755, and GB/T 6892. We can provide materials that match your local market requirements.
2. What surface treatments can you provide?
The standard is Mill Finish (bare aluminum). We also provide Anodizing (silver, black, and bronze) and Powder Coating in various RAL colors to improve rust resistance and appearance.
3. Do you offer further processing services?
Yes. Besides basic extrusion, we offer deep processing services. We can cut the bars to your specific length (like the 2900mm in this order). We also do hole drilling, punching, and CNC machining.
4. How do you calculate the weight?
We use the actual weighing method. We will weigh the goods on a calibrated scale before loading and provide the weighbridge ticket. You only pay for the exact weight you receive.
