Choosing the right raw material is the most critical decision in cookware manufacturing. The metal must be soft enough to be pressed into complex shapes without cracking, conduct heat evenly for a perfect cooking experience, and be completely safe for food contact. This is why 3003-O aluminum has become the undeniable industry standard for producing high-quality pots, pans, and cookers worldwide.
This technical guide provides a deep dive into the properties of the 3003-O aluminum sheet and circles, explaining exactly why it outperforms other metals and what you, as a professional buyer, must verify before placing a bulk order.
What is 3003-O Aluminum
3003-O aluminum is a workhorse alloy from the Al-Mn (Aluminum-Manganese) series. The "O" in 3003-O stands for "fully annealed." Annealing is a heat treatment process that heats the metal and then slowly cools it. This process removes internal stress and recrystallizes the grain structure, making the aluminum extremely soft and ductile. It is this softness that makes it the perfect starting material for cookware.
It is widely used to produce a huge variety of common kitchenware, including:
- Frying pans and woks
- Cooking pots, stockpots, and saucepans
- Pressure cooker bodies
- The inner pots for electric rice cookers
- Deep-dish pizza pans
- Food storage containers
Typical Specs of 3003-O Aluminum Sheet for Cookware
When sourcing this material, your order needs to align with industry-standard specifications to ensure it runs smoothly on your production line. Below is a reference table for the mechanical properties and common dimensions for cookware-grade 3003-O aluminum.
| Item | Specification Parameter |
| Alloy | 3003 Aluminum |
| Temper | O (Fully Annealed) |
| Thickness Range | 1.0 mm – 4.0 mm |
| Diameter (for Circles) | 100 mm – 1200 mm |
| Tensile Strength | 95 – 130 MPa |
| Yield Strength | ≥ 35 MPa |
| Elongation (%) | ≥ 20% |
| Density | ~2.73 g/cm³ |
| Thermal Conductivity | ~160 W/m·K |
| Standard | ASTM B209 / EN 485 |
Core Advantage of 3003-O Aluminum Discs
The single biggest challenge for any press shop manager in a cookware factory is material cracking during the deep drawing process. Deep drawing is when a flat aluminum circle (or disc) is placed in a hydraulic press and a punch forces it through a die to form the deep, seamless body of a pot.
If the material is not ductile enough, it will tear and crack under the intense stretching forces. This leads to a high scrap rate, wasted material, and costly production delays.
This is where 3003-O aluminum discs truly shine. Because it is fully annealed:
- It has extremely high elongation (over 20%). This means the metal can stretch significantly before it fractures.
- It has very low yield strength. This means less force is required from the press to make the metal flow into the die shape.

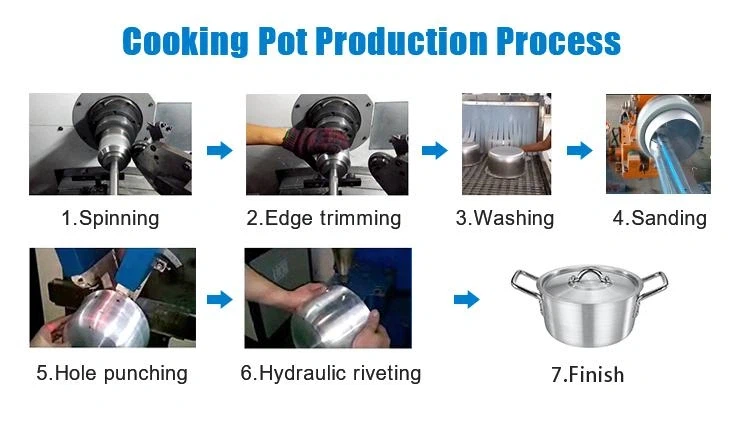

This combination allows manufacturers to produce deep, complex pot shapes-sometimes with depths greater than their diameters-in a single draw, without any cracks. It is the ultimate non-cracking aluminum for deep drawing. The same properties make it ideal for spinning, a process used to form products like pressure cooker lids.
The Earring Problem: A Key Metric for 3003-O Aluminum Circles
Even if the material doesn't crack, another major issue for cookware manufacturers is "earing." When a flat aluminum circle is deep drawn, the top edge of the newly formed pot is often not flat. It has a wavy, ear-like pattern.
This earring is caused by inconsistent grain structure in the aluminum. A high earning rate is a huge problem because:
- It creates material waste. The entire wavy edge must be trimmed off, which is pure yield loss.
- It adds an extra production step. Trimming takes time and wears down cutting tools.
A high-quality 3003-O aluminum circle for cookware must have excellent earring control. At GNEE, our precise control over the annealing process ensures a fine, uniform grain structure, which keeps the earing rate below 5%. This directly translates to less waste and higher efficiency for our customers.
Even Heating with 3003-O Aluminum Cookware
The end-user experience is what sells a cooking pot. One of the most important factors is how evenly it heats. Poor heat distribution creates hot spots that burn food.
3003 aluminum has an excellent thermal conductivity of around 160 W/m·K. This is far superior to stainless steel (around 16 W/m·K). This high conductivity means that when a 3003-O aluminum pot is placed on a stove, heat from the burner spreads rapidly and uniformly across the entire base and up the sidewalls.
The real-world benefits for the home cook are:
- No more burnt spots: Food cooks evenly without sticking to one hot area.
- Faster cooking times: The pot gets to the desired temperature much more quickly.
- Better energy efficiency: Less gas or electricity is wasted.
Food-Grade Safety and Surface Finishes
3003 aluminum is an Al-Mn alloy, meaning it is composed of aluminum and manganese. It contains no heavy metals like lead or cadmium, making it inherently food-safe. However, raw aluminum is soft and can react with acidic foods. To enhance its durability and performance, 3003-O cookware is always given a surface treatment.
The stable surface of our 3003-O aluminum sheet makes it a perfect substrate for various industry-standard finishes:
- Anodizing: This electrochemical process creates a hard, inert, non-reactive layer of aluminum oxide on the surface. Anodized 3003-O cookware is highly resistant to scratches and corrosion and is completely safe for all types of food.
- Non-stick Coating (PTFE/Ceramic): The world's most popular frying pans use non-stick coatings. Our 3003-O aluminum circles are delivered with a clean, oil-free surface that is ready for your coating line, ensuring strong adhesion of the non-stick layer.
- Brushed Finish: For aesthetic appeal, the exterior of pots and pans can be brushed to create a premium, satin texture.

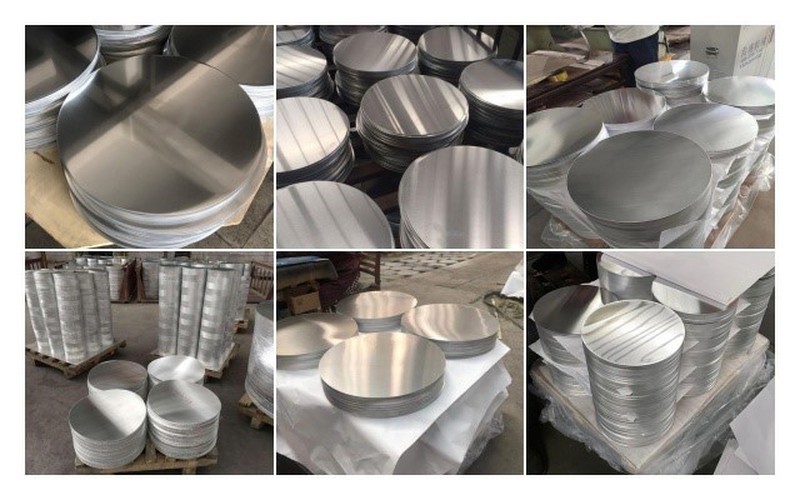

Primary Supply Form: Aluminum Circles (Discs)
While we can supply 3003-O aluminum as large coils or cut-to-size sheets, the most in-demand product form for the cookware industry is pre-cut aluminum circles, also known as aluminum discs. Buying pre-cut circles saves manufacturers the time and scrap associated with stamping circles from a large sheet.
At GNEE, we offer custom diameter aluminum circles to match the exact specifications of your deep drawing molds.
Your Buying Guide for Wholesale 3003-O Aluminum Circles
When you are sourcing 3003-O aluminum discs internationally, the price is important, but quality consistency is critical. A bad batch of material can shut down your entire production. Here is what professional buyers must demand from their supplier:
- Guaranteed Deep Drawing Quality: The supplier must guarantee that the material will not crack under your specified drawing ratio.
- Low Earing Rate: Ask for a specific maximum earing percentage (e.g., ≤5%).
- Flawless Surface Quality: The discs must be free of scratches, oil stains, roll marks, and oxidation. A dirty surface will cause non-stick coatings to peel.
- Tight Thickness Tolerance: Inconsistent thickness will lead to inconsistent drawing performance. A tolerance of ±0.05 mm is a good standard.
- Fine, Uniform Grain Size: This is the key to good formability and low earing.
GNEE Supply: Your Partner for Cookware Aluminum
Our Core Advantages:
- Stable Annealing Process: Our computer-controlled annealing furnaces produce a perfectly stable O-temper with a uniform grain structure, guaranteeing consistent deep drawing performance from the first disc to the millionth.
- Superior Earing Control: We specialize in producing low-earing 3003-O aluminum circles, which directly reduces your trimming waste and lowers your final product cost.
- Custom Circle Production: We can supply aluminum discs in any diameter from 100 mm to 1200 mm, with precise, burr-free edges.
- Ready-to-Coat Surface: Our cleaning and inspection process ensures every disc is delivered clean and ready for your anodizing or non-stick coating line.

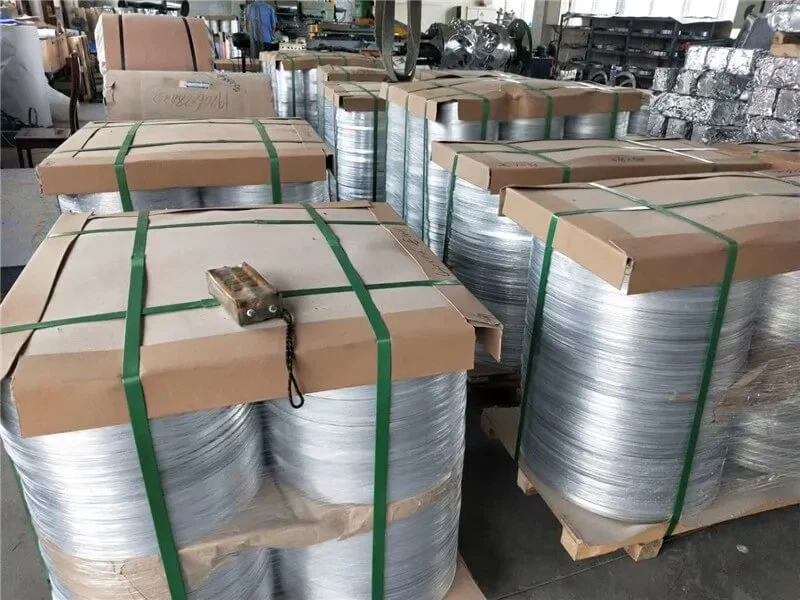

Export Packaging That Protects Your Product
All of our 3003-O aluminum circles and sheets are packaged for long-haul sea freight. Products are stacked on sturdy, fumigation-free wooden pallets, separated by paper to prevent scratches, wrapped in waterproof kraft paper and plastic film, and secured with steel straps to prevent shifting. This robust packaging protects your material from moisture, corrosion, and physical damage.
Ready to get a fast, accurate quote for your cookware production? To help us provide the best price and lead time, please include the following information in your inquiry:
Product: Aluminum Circles or Sheets
Temper: 3003-O
Thickness (mm) & Diameter (mm)
Surface Requirement: (e.g., for non-stick coating, for anodizing)
Your Quantity
Send your detailed RFQ to our sales team now, and we will respond with a complete quotation within 24 hours.
