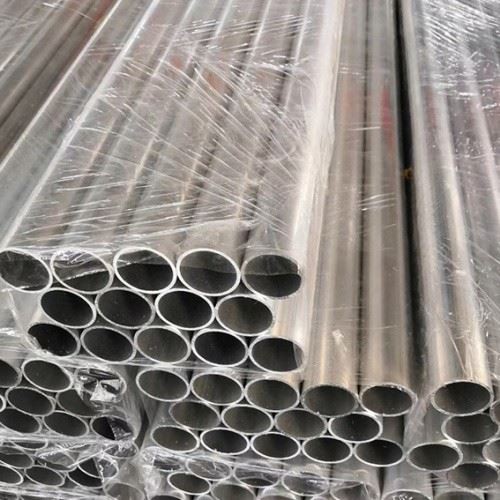

A1050 Aluminum Round Tube and Pipe Description
If you are looking for a high-purity aluminum tube with excellent corrosion resistance, outstanding ductility, and strong thermal conductivity, 1050 aluminum tube from GNEE is an ideal solution. Widely used across multiple industries, this alloy offers dependable performance and cost efficiency. Contact GNEE today to explore customized 1050 aluminum tube options tailored to your project needs.
Aluminum-based 1050 aluminum alloy belongs to the "commercially pure" wrought family (1000 or 1xxx series). It is not utilized in castings because it is a wrought alloy. Rather, extrusion or rolling are typically used to make it. Because of its high electrical conductivity, corrosion resistance, and workability, it is frequently utilized in the chemical and electrical sectors. Because 1050 alloy pipe has a higher thermal conductivity than other alloys, it is occasionally utilized in the production of heat sinks. It is not as strong mechanically as more heavily alloyed metals. Heat treatment cannot strengthen it, but cold working can.
A1050 aluminum round tube exceptional qualities of alloy make it suitable for a wide range of uses. It is a perfect option for use in food industry containers where hygiene and preservation are crucial because to its strong corrosion resistance, superior formability, and thermal conductivity. It is also frequently utilized in chemical process plant equipment that handles delicate compounds due to its non-toxic nature.
Because of its ease of production, 1050 aluminum alloy pipe is a staple in conventional sheet metal work in addition to its industrial applications. From reflective panels in lighting fixtures to architectural flashings that shield buildings from the weather, its adaptability is limitless.
Other Types Of 1050 Aluminium Pipes & Tubes
Aluminium 1050 Round Pipes
Aluminium 1050 Polished Pipes
Aluminum 1050 Seamless Pipes
1050 Aluminum Hot-Rolled Tubes
ASTM B241 Aluminium 1050 Pipes

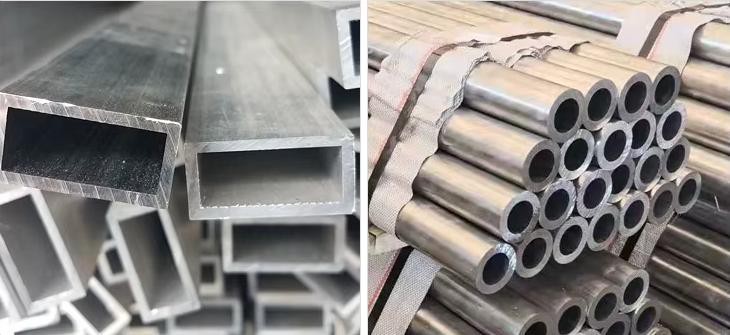

Aluminium 1050 Round Tubes
1050 Aluminium Cold Drawn Pipes
Aluminium 1050 Welded Tubes
Aluminium 1050 Square Pipes
Equivalent Grades of Aluminium 1050 Pipes & Tubes
| STANDARD | WERKSTOFF NR. | ISO | UNS |
| Aluminium 1050 | 3.0255 | Al99.5 | A91050 |
Chemical Composition of 1050 Aluminium Pipes & Tubes
| Grade | Si | Fe | Cu | Mn | Mg | Zn | Ti |
| 1050 | 0.25 max | 0.40 max | 0.05 max | 0.05 max | 0.05 max | 0.05 max | 0.03 max |
Mechanical Properties of 1050 Aluminium Pipes & Tubes
| Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation After Fracture A/% | Hardness (HB) |
| 105-145 | 20 Min | 3% | 33 |
Aluminum Alloy 1050 Pipe & Tube Specification:
| Aluminium 1050 Pipe & Tube Standards | ASTM B221, ASTM EN573, ASTM EN485 |
| Aluminium 1050 Round Pipe & Tube Size | OD 300 MM, ID 100 MM , THICKNESS TO 50 MM |
| Aluminium 1050 Square Pipe & Tube Size | OD 200MM , THICKNESS UP TO 10MM |
| Aluminium 1050 Rectangular Pipe & Tube Size | OD 200 MM , ID 60 MM , THICKNESS UP TO 15 MM |
| Aluminium 1050 Pipe & Tube Length | 1000 mm to 8000 mm |
| Aluminium 1050 Pipe & Tube Tempers | O, H12, H14, H16, H18, H22, H24, H26, H112 |
| Aluminium 1050 Pipe & Tube Finish | As per Temper |
| Aluminium 1050 Pipe & Tube Delivery | 15 to 30 Working days From the Date of the purchase order |
| Aluminium 1050 Pipe & Tube Origin | Indian, European, German, South African, Mexican, USA & Russian |
| Aluminium 1050 Pipe & Tube Test Certificate | EN 10204 3.1 Mill TC or any 3rd party inspection shall be available. |
| Aluminium 1050 Pipe & Tube Packing & Shipping | Packing shall be SEA Worthy wooden packaging, with fumigation as well as delivery of Aluminum 1050 Alloy Round Bars, can be given by air & sea as per clients' requirements. |
| Aluminium 1050 Pipe & Tube Applications | Packaging industry for making boxes, containers, foil, and collapsible tubes. Large jar lids Pressure plates Strip for Heat Exchangers Boiler Manufacturing Industry Insulation Board Food & Dairy industry equipment Automotive Coverings Reflectors Architectural & Solar Industry Railing Pipe/Poles for Power & Street Light Kitchen Appliances |
| Product Name | 1050 Aluminum Pipe 1060/1050/1100 |
| Temper | O/H14/H18/H19/H16 |
| Brand | GNEE |
| Payment Acceptable | T/T, L/C |
| Port | Tianjin, Shanghai, etc. |
| Package | Wooden package, less than 2 tons per cases |
| Delivery time | within 15 working days |
Contact GNEE today to request a quote, discuss custom 1050 aluminum pipe specifications, or learn more about our 1050 aluminum pipe solutions for your projects.
Shipping & Packaging
Customer visit
Certification Certificate
Frequently Asked Questions
Is It Possible to Weld 1050 Aluminum Pipe?
Indeed, a variety of methods, such as MIG and TIG welding, can be used to fuse 1050 aluminum. However, careful parameter control is necessary to prevent compromising its mechanical qualities because of its sensitivity to heat treatment.
What distinguishes aluminum 1050 from aluminum 1350?
The chemical makeup and planned uses of 1050 and 1350 aluminum are the main distinctions between them. While 1050 aluminum places more emphasis on formability and corrosion resistance, 1350 aluminum is made for electrical applications because of its greater electrical conductivity.
Is 1050 aluminum alloy pipe appropriate for machining and welding?
Although 1050 aluminum alloy is very weldable, its softness makes it difficult to machine. Welding is possible with the right heat treatment, but maintaining the appropriate mechanical qualities and corrosion resistance requires careful parameter management.
