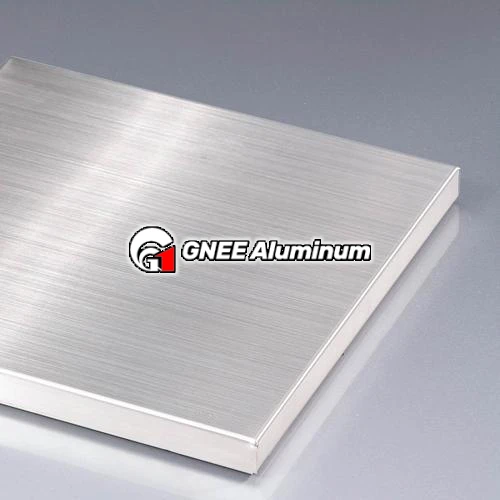

Aluminium 1050 H14 Sheet – Premium Pure Aluminium Plate
Looking for high-quality, versatile aluminium sheets for industrial and construction applications?
GNEE supplies 1050 H14 aluminium sheet and coil with excellent formability, corrosion resistance, and surface finish, ideal for a wide range of manufacturing applications.
Overview of Aluminium 1050 H14 Alloy
Aluminium 1050 H14 is part of the commercially pure 1000 series aluminium alloys with 99.5% minimum aluminium content. The H14 temper refers to a half-hard cold-worked condition, providing the material with improved strength while retaining the ductility and excellent surface properties of pure aluminium.
This combination of properties makes 1050 H14 aluminium sheet well-suited for:
Industrial and chemical containers
Architectural flashings and ACP panels
Battery soft connections
Lamp reflectors, signage, and general sheet metal fabrication
Key Characteristics of 1050 H14 Aluminium Sheet
| Feature | Description |
|---|---|
| Workability | Cold-worked (non-heat-treated) for excellent forming and bending performance |
| Surface Finish | Highly reflective, smooth, and aesthetically appealing |
| Corrosion Resistance | Outstanding natural corrosion resistance in industrial and marine environments |
| Weldability | Excellent for Gas, Arc, Brazing, and Soldering processes |
| Anodising | Strong anodising performance for decorative and protective coatings |
Typical Applications of Aluminium 1050 H14 Sheet
1050 H14 aluminium coil and sheet is commonly used in:
PS aluminium CTP printing plates
Aluminum composite panels (ACP)
Chemical and industrial containers
Architectural flashings and facades
Battery soft connections
Aluminium trays, signage, lamp reflectors
Radiators and cable sheathing
This versatility highlights the wide industrial and commercial applicability of 1050 H14 aluminium.
Chemical Composition of Aluminium 1050 H14
| Element | Si | Fe | Cu | Mn | Mg | Zn | Ti | Others | Al |
|---|---|---|---|---|---|---|---|---|---|
| Content (%) | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | 0.07 | 0.05 | 0.15 | Balance |
Physical Properties of 1050 H14 Aluminium Sheet
| Property | Value |
|---|---|
| Density | 2.71 g/cm³ |
| Melting Point | 650 °C |
| Thermal Expansion | 24 x 10⁻⁶ /K |
| Modulus of Elasticity | 71 GPa |
| Thermal Conductivity | 222 W/m·K |
| Electrical Resistivity | 0.0282 x 10⁻⁶ Ω·m |
Mechanical Properties of 1050 H14 Aluminium Plate
| Property | Value |
|---|---|
| Tensile Strength | 105 – 145 MPa |
| Proof Stress | ≥ 85 MPa |
| Hardness (Brinell) | 34 HB |
| Elongation (A) | ≥ 12 % |
| Thickness Range | 0.2 mm – 6.00 mm |
Advantages of GNEE 1050 H14 Aluminium Sheet
High formability: Easy cold forming and bending
Excellent corrosion resistance: Long-lasting in industrial and outdoor environments
Highly reflective finish: Perfect for decorative and architectural applications
Wide industrial application: From chemical containers to signage and lamp reflectors
Cost-effective: Simple production process and mature technology keep costs competitive
Request a Quote for GNEE 1050 H14 Aluminium Sheet
Contact GNEE today to get technical advice, customized dimensions, and competitive pricing for your 1050 H14 aluminium sheet or coil. We provide full material certificates and ensure fast delivery worldwide.
