Industrial roller mills are used to roll aluminum foil either hotly or coldly. Through successive passes between two rolls, the rolling process gradually reduces the material's thickness. There are various configurations for roll mills: Two work rolls are used in 2Hi and 2Hi roll mills, whereas four rolls-two smaller work rolls and two larger backup rolls-are used in a 4Hi. Rolled aluminum foil and aluminum sheets can be found in most industrial and consumer products.
GNEE can manufacture and sell premium 1050 aluminum foil in a variety of sizes and tempers thanks to its decades of experience producing aluminum sheets.

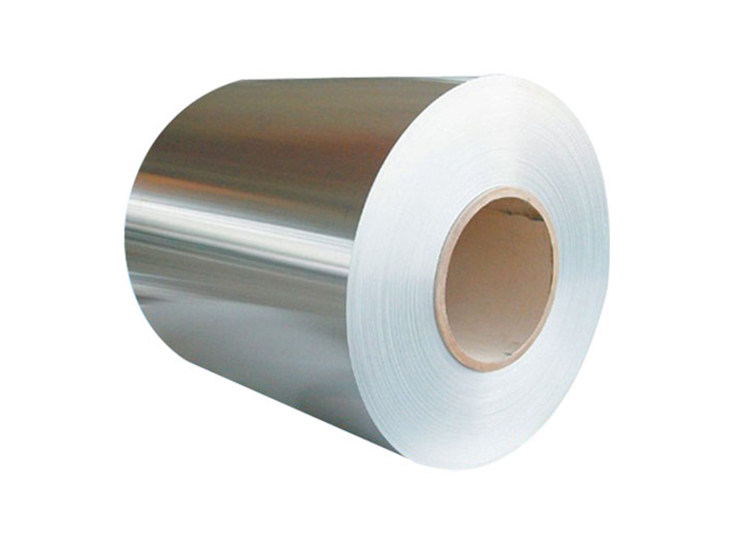

1050 Aluminum Foil Technical Parameter
| Ingredient | V | Ti | Mn | Fe | Zn | Mg | Cu | Si | Al |
| Content | ≤0.05 | ≤0.03 | ≤0.05 | 0-0.4 | ≤0.05 | ≤0.1 | ≤0.05 | ≤0.25 | 99.5 |
| Alloy type | 1050 aluminium foil | ||||||||
| Alloy state | O, H18, H19, H22, H24 | ||||||||
| Thickness (mm) | 0.014-0.2 | ||||||||
| Width (mm) | 100-1600 | ||||||||
| Length | Coil | ||||||||
Applications of 1050 Aluminum Foil
Utilized for transformer winding: The primary raw material for transformer winding is high-quality, pure aluminum foil, which is indispensable for the manufacturing of dry-type transformers due to its smooth surface, soft properties, and high conductivity qualities.
Transformer manufacturers typically choose grades 1050, 1060, 1070, and 1350, with an aluminum composition of at least 95% but typically over 99.6% to 99.7%. Aluminum sheet foils are primarily utilized as the conductive material in dry-type transformers with high and low voltage windings. Aluminum foil is the most widely used material for transformer strips because aluminum transformers are typically less expensive than copper transformers.
Additional uses: Disposable aluminum foil plates are most frequently used for outdoor decoration, cooking wrap and utensils, and hundreds of industrial applications requiring a sturdy, lightweight, and simple building material.
Quality of 1050 Aluminum Foil
The aluminum foil should have a smooth, clean surface. There is no rust; it is empty, folds, has dark stains, has slots, wrinkles, and is concave and convex.
There cannot be a significant color difference on the aluminum foil's surface.
There should be no burr, incorrect layer, bruising, or collapse on the aluminum foil's end surface; it should be neat and clean.
1050 Aluminum Foil Order Process
Details of the 1050 Aluminum Foil Packing
Regulations and consumer requirements are taken into consideration when packing and labeling our products. Every precaution is made to prevent any harm that could occur during storage or transit. It covers craft paper, plastic film, or standard export packaging. To prevent product damage during delivery, a wooden pallet or box is used. Additionally, the outside of the packages are branded with clear labels that make it simple to identify the products and provide quality information.
Our Advantages
Pure primary ingot.
Accurate dimensions and tolerance.
High-quality surface. The surface is free from defects, oil stains, waves, scratches, and roll marks.
High flatness.
Tension-leveling, oil-washing.
With decades of production experience.
