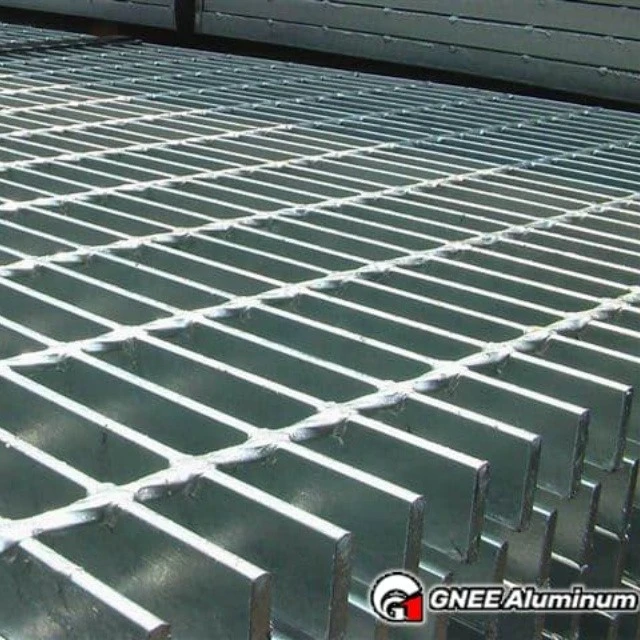

6061 T6 Aluminum Bar Grating Description
Aluminum Bar Grating, also known as Chagged Aluminum Bar Grate, is lightweight, yet strong and durable for all load-bearing applications requiring high corrosion and weather resistance. Aluminum Bar Grating is available in a variety of bearing bar spacing, thicknesses, and heights, depending on the application and load requirements. GNEE offers smooth top or serrated aluminum bar grate for added slip resistance.
6061 T6 Aluminum Bar Grating is the most versatile of the heat treatable aluminum alloys. 6061 Aluminum alloy offers a wide range of mechanical properties and corrosion resistance.
Aluminum 6061 Chemistry
| Aluminum | Balance |
| Chromium | 0.04 – 0.35 |
| Copper | 0.15 – 0.4 |
| Iron | 0 – 0.7 |
| Magnesium | 0.8 – 1.2 |
| Manganese | 0.15 max |
| Other | 0.15 max |
| Remainder Each | 0.05 max |
| Silicon | 0.4 – 0.8 |
| Titanium | 0.15 max |
| Zinc | 0.25 max |
Mechanical & Physical Properties of 6061 T6 Aluminum Alloy
| Property | Value |
|---|---|
| Density | 0.1 lb/in³ |
| Ultimate Tensile Strength | 45,000 psi |
| Yield Tensile Strength | 40,000 psi |
| Fatigue Strength | 14,000 psi |
| Modulus of Elasticity | 10,000 ksi |
| Shear Modulus | 3,800 ksi |
| Shear Strength | 30,000 psi |
| Melting Point | 1,080 – 1,205 °F |
| Hardness (Brinell) | 95 (per ASTM B-221) |
| Welding | Excellent |
| Machining / Grinding | Good |
| Bending / Forming | Poor |
| Wear Resistance | Good |
| Corrosion Resistance | Good |
| Poisson's Ratio | 0.33 |
| Specific Gravity | 2.7 |
| Melting Point (Deg F) | 1090 |
| Modulus of Elasticity Tension | 10 |
| Modulus of Elasticity Torsion | 3.8 |
- Principal Design Features: Probably the most common heat-treatable aluminum alloy, often used to make heavy structures that require good corrosion resistance.
- Forming: Easily cold worked and shaped in the annealed condition. Stamping, bending, spinning, deep drawing can all be easily accomplished using standard methods.
- Welding: 6061 t6 aluminum alloy has very good welding characteristics and can be welded by all common welding techniques. Gas tungsten arc welding is generally used for thin sections (less than 0.032 inches), while gas metal arc welding is used for heavier sections. Use alloy 4043 filler wire for best results.
Applications of 6061 T6 Aluminum Bar Grating
6061 T6 Aluminum Grating is widely used in interior ceilings, exterior curtain walls and other decorative applications due to its light weight, excellent corrosion resistance and non-sparking performance. It is suitable for industrial applications where strength-to-weight ratio is important, such as sewage treatment plants. It is mainly used for safety protection, as walkways, floors, platforms, stair treads, fences, etc.
Specification of GNEE 6061 T6 Aluminum Bar Grating
| Item | Details |
|---|---|
| Material | Aluminum 6061 6063 etc. |
| Finish | Mill Finish, Clear Anodized, Powder Coated |
| Surface Type | Serrated surface,Smooth surface |
| Bearing Bar Type | Rectangular, I Type, T Type |
| Cross Bar Type | Square Twisted Bars, Round Bars |
| Workability | Easy to Weld, Cut, Form and Machine |
| Standard | ASTM,AS,BS,DIN,EN |
| Supply Ability | 10000 ton per monh |
| Delivery Time | 10-30 days |
| Application |
Walkways,Flooring,Ramps,Bridge flooring,Trench and drainage covers,Mezzanines,Platforms,Stair treads |
GNEE Aluminum grating are generally available in four types: swaged rectangular aluminum grating, swaged I-bar aluminum grating, swaged flush-top aluminum grating, and dovetail pressure locked aluminum grating.
When safety is critical, aluminum grating helps to gain a firm foothold in roof walkways, walkways, stairs and other surface applications. GNEE 6061 T6 Aluminum Bar Grating is lightweight, easy to cut and fabricate. Accept customized materials, sizes, and we also provide a variety of processing services, such as welding, punching, bending, CNC cutting, grinding etc.
Our Advantages
All GNEE aluminum gratings are supervised by a strict quality control system, both in international standards and corporate testing processes. All products received by our customers are qualified and are the best in performance and packaging.
GNEE is packed in plastic or kraft paper, and moisture-proof desiccant is placed in each package to prevent moisture and rain, and special wooden pallets and steel belts are used for reinforcement to ensure no deformation. When exported, the products are packed in wooden boxes and pallets and stamped with fumigation marks.
GNEE has been committed to the production and export of various types of aluminum products for more than 17 years, all our sales representatives will provide professional advice and after-sales service is also timely.
