What Does T5 in 6063-T5 Aluminum Profile Mean?
When sourcing aluminum, the grade format can be confusing. Here is the direct answer: 6063 represents the chemical composition of the aluminum alloy (primarily Aluminum, Magnesium, and Silicon). T5 represents the heat treatment method, meaning the aluminum is cooled directly from the hot extrusion press using air, and then artificially aged in an oven to achieve medium strength and an excellent surface finish.
If you are new to industrial aluminum, understanding these codes is critical for making the right purchasing decisions. Below is a detailed engineering breakdown of how aluminum alloys are named, what the T5 temper actually does, and how to apply this knowledge to your manufacturing projects
Decoding 6000 Series Aluminum Tube
In international trade, we use the 4-digit designation system created by the Aluminum Association (AA). Understanding this system helps you quickly identify the basic properties of any material before you buy.
The First Digit: The Principal Alloying Element
The first number tells you the primary element mixed with the aluminum.
- 1xxx Series: Pure Aluminum (≥99.0%). Excellent electrical conductivity, very soft.
- 2xxx Series: Copper added. High strength, used in aerospace, but poor corrosion resistance.
- 3xxx Series: Manganese added. Good formability, commonly used for beverage cans and roofing.
- 4xxx Series: Silicon added. Low melting point, mostly used as welding wire.
- 5xxx Series: Magnesium added. Excellent marine corrosion resistance and weldability.
- 6xxx Series: Magnesium and Silicon added. This includes the 6000 series aluminum tube. It offers a perfect balance of structural strength, extrudability, and corrosion resistance.
- 7xxx Series: Zinc and Magnesium added. Ultra-high strength, used for aircraft frames.
- 8xxx Series: Other elements (like Iron or Lithium) not covered above.
The Second Digit: Alloy Modifications
The second number indicates modifications to the original alloy or its impurity limits.
- "0" means it is the original, unmodified alloy (e.g., 6063).
- "1", "2", or "3" means the original recipe was modified slightly to improve a specific trait (like better machinability).
The Third and Fourth Digits: Specific Alloy Identification
For the 2xxx through 8xxx series, these last two numbers have no special mathematical meaning; they just serve to identify the specific alloy within the group (like "63" in 6063). For the 1xxx series, the last two digits indicate the minimum aluminum purity above 99.00%.
The "T" Temper Designation in 6063-T5 Aluminum Round Pipe
Now that we know 6063 is an Al-Mg-Si alloy, what about the letters and numbers that follow it?
The hyphenated suffix (like -T5 or -H112) indicates the "Temper" or treatment state. "-T" stands for Thermally Treated. The number following the "T" (from 1 to 10) defines the specific cooling and aging process.
What exactly is the T5 Process?
For a 6063-T5 aluminum round pipe, T5 means the material is cooled from an elevated temperature shaping process (the extrusion press) and then artificially aged.

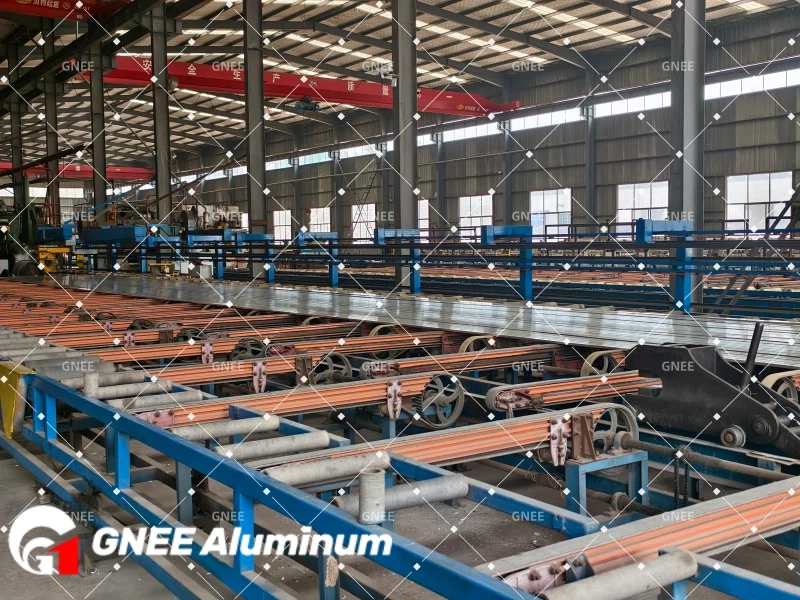

- Extrusion & Air Cooling: The aluminum billet is heated and pushed through a steel die at around 500°C. As the profile exits the die, it is cooled relatively gently by industrial fans (air-quenched) on the run-out table.
- Artificial Aging: After cooling, the profiles are placed in large aging ovens. At GNEE, we typically hold 6063-T5 materials at 175°C for about 6 to 8 hours. This controlled heating process locks the magnesium and silicon molecules into a stable internal structure, significantly increasing the metal's hardness and yield strength.
Are you confused about which temper code your project requires?
Over-specifying a temper can unnecessarily increase your purchasing costs. Send your application requirements to the GNEE engineering team. We will analyze your load-bearing needs and provide a highly competitive custom 6063 aluminum extrusion price within 24 hours.
Mechanical Properties of 6063-T5 Aluminum Sheet and Extrusions
Why do engineers specifically request 6063-T5? It is because of its reliable mechanical properties. While it is not as strong as a 7075 aerospace alloy, it provides exactly what architectural and industrial designers need: moderate strength with superior cosmetic finish capabilities.
| Property | Metric Value | Imperial Value |
|---|---|---|
| Ultimate Tensile Strength | ≥150 MPa | ≥21,750 psi |
| Yield Strength | ≥110 MPa | ≥16,000 psi |
| Elongation at Break | ≥8% | ≥8% |
| Hardness (Webster) | ≥8 HW | - |
| Thermal Conductivity | ~200 W/m·K | - |
(Note: Data applies to standard 6063-T5 aluminum sheet and extruded profiles under normal ASTM B221 and GB/T 5237 standards.)
Factory Processing of Custom 6063-T6 Aluminum Extrusion vs T5
Many buyers ask us about the difference between T5 and T6. As a factory, we process both, but the methods and costs differ.
While T5 is air-cooled directly after extrusion, the T6 temper requires a "solution heat treatment." This means the 6063-T6 aluminum extrusion is rapidly water-quenched immediately after exiting the press. This severe thermal shock traps more alloying elements in the solid solution, raising the yield strength to over 160 MPa.
So why not always choose T6?
Because water-quenching makes the metal more brittle and slightly degrades the surface smoothness. If you are manufacturing heat sinks, window frames, or any part with complex, thin-walled cavities, the T6 water-quenching process might distort the profile. Furthermore, T5 provides a superior surface for an anodized 6063 aluminum tube. If your product needs to look good and doesn't support heavy structural bridges, T5 is the smartest, most cost-effective choice.
Real-World Applications of 6063-T5 Aluminum Square Tube
Because of its balanced properties, 6063-T5 is commonly known as the "architectural alloy." Its primary applications include:
- Architectural Framing: It is the industry standard for commercial window frames, door frames, glass curtain walls, and skylight structures. Its natural corrosion resistance handles rain and environmental exposure easily.
- Industrial Automation: Machine guards, conveyor frames, and T-slot framing systems (like 2020 or 4040 profiles) use 6063-T5 aluminum square tube due to its straightness and ease of cutting and bolting.
- Thermal Management: The electronics industry relies on T5 for extruded heat sinks. The air-cooling process allows factories to extrude extremely thin, tall cooling fins without them snapping off.
- Furniture and Retail Displays: Due to its exceptional anodizing response, it is used for high-end retail display racks, shower enclosures, and modern interior lighting fixtures.
GNEE Factory Supply and Packaging for 6063 Aluminum Plate and Profiles
Knowing the technical data is only half the battle. Sourcing it securely from a reliable 6063-T5 aluminum profile supplier is what guarantees your production line keeps running.
Our Production Capability:
At GNEE, we operate advanced extrusion presses ranging from 600 tons to 3000 tons. This allows us to supply everything from tiny LED lighting channels to massive structural beams. We enforce strict temperature controls during the artificial aging process to guarantee every batch meets the 110 MPa yield strength requirement. We also provide full Material Test Certificates (MTC) with every shipment.
Solving the Packaging Pain Point:
The biggest issue buyers face when they buy extruded aluminum tubing factory direct is surface scratching during sea freight. We treat packaging as a critical engineering step:
- Each profile is separated by EPE (pearl cotton) foam to prevent metal-on-metal friction.
- Bundles are wrapped tightly in waterproof shrink film to prevent white rust caused by salty ocean moisture.
- The materials are then secured inside fumigated wooden crates or strapped to wooden pallets tailored for forklift unloading.
Tip: We recommend ordering custom lengths of 5.8 meters to perfectly fit inside a standard 20ft shipping container, maximizing your freight value.
