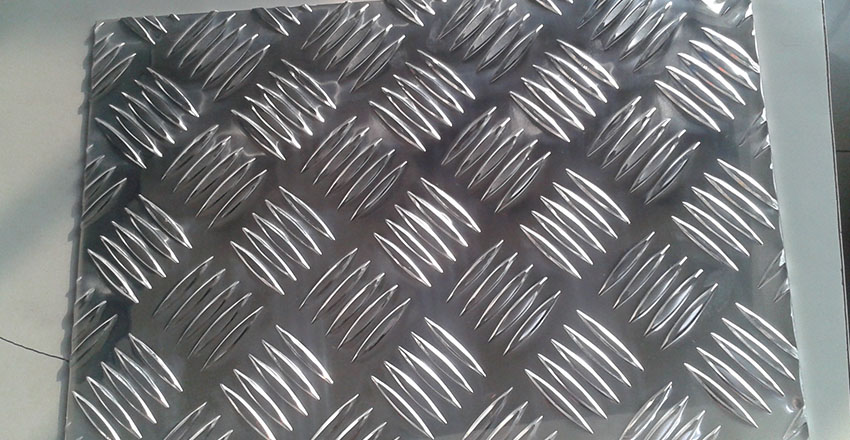

Introduction to GNEE Alu Tread Plate EN AW-5754 H114 Pickled 5 Bar
The EN AW-5754 H114 pickled 5-bar tread plate from GNEE Aluminum is a premium aluminum alloy product. It is the ideal material for a variety of applications due to its exceptional strength, formability, and resistance to corrosion. Its durability and appeal are further increased by the pickled surface treatment, which guarantees a smooth and clean finish.
A non-heat-treatable alloy with a high magnesium content, EN AW-5754 H114 5 Bar aluminum tread plate has medium-to-high strength and outstanding corrosion resistance. The plate is strain-hardened and stabilized thanks to the H114 temper, which makes it perfect for outdoor and heavy-duty flooring applications. A common anti-slip surface in the transportation, maritime, and industrial sectors is the 5-bar pattern.
Specifications of GNEE Alu Tread Plate EN AW-5754 H114 Pickled 5 Bar
| Item | Details |
|---|---|
| Alloy | 5754 |
| Temper | O, H22, H32, H114 |
| Thickness | 1.0mm – 10.0mm |
| Width | 600mm – 1500mm |
| Length (Sheet) | Up to 11000mm |
| Coil Inner Diameter (ID) | 508mm |
| Height of Bar | Min 0.6mm (for thickness 1.1mm – 2.0mm, 5.0mm – 6.0mm) Min 0.8mm (for thickness 2.0mm – 10.0mm) |
| Surface Finish | Mirror surface, Matte surface |
| Pattern Types | a. Big five bars aluminum checkered plate b. Small five bars aluminum tread plate c. Aluminum diamond plate (one bar/pointer) d. Two bars aluminum chequered plate e. Three bars aluminum checkered plate |
| Key Features | 1. High strength 2. Good corrosion resistance 3. Excellent seawater resistance 4. High fatigue strength 5. Easily welded |
Application of Alu Tread Plate EN AW-5754 H114 Pickled 5 Bar
A. The EN AW-5754 Alu Tread Plate has good skid resistance. As a result, it is frequently utilized in trench covers, loading ramps, dock flooring, stair treads, and even automobiles, trucks, ambulances, and fire trucks.
B. Because of its decorative function, it can be used to decorate ceilings, cabinets, and wall panels.
C. Its anti-corrosive properties allow it to be utilized in the chemical industry as well as for ship and port facility decoration.
The key features of 5754 H114 aluminum tread plate
Among the primary characteristics are:
High strength for flooring and structural uses.
Outstanding resistance to corrosion, particularly in industrial and saltwater settings.
High fatigue strength, making it durable for long-term use.
Good weldability for platforms, vehicles, and ships.
Five bars make up the anti-slip pattern for ramps and walkways.
Pickled surface finish, which guarantees improved homogeneity and cleanliness.
