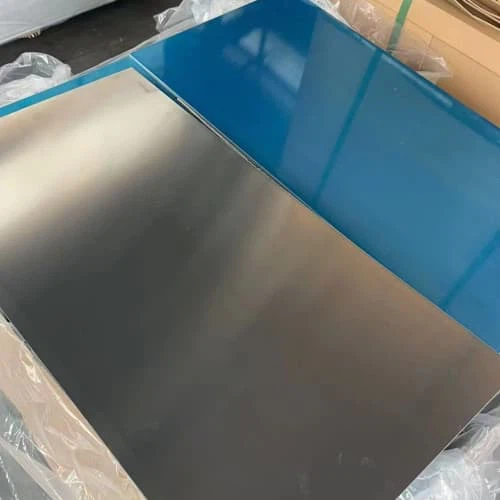

5A06-H112 Aluminum Plate Description
5A06-H112 aluminum plate is a high-magnesium, non-heat-treatable aluminum alloy known for its excellent corrosion resistance, high weldability, and medium-to-high strength. Among the 5000-series aluminum alloys, 5A06 contains one of the highest levels of magnesium (up to 6.8%), which gives it superior resistance to marine and industrial atmospheres.
5A06-H112 aluminum alloy plate is widely used in marine structures, shipbuilding, pressure vessels, and transportation equipment where long-term durability, fatigue strength, and lightweight performance are strictly required.
The H112 temper means that the aluminum plate has been strengthened by being shaped (like through hot or cold rolling) without any specific control over how much it was strengthened or heated. This temper guarantees stable mechanical properties and structural integrity, making it ideal for immediate industrial machining and welding.
As a direct manufacturer and supplier, GNEE China offers 5A06-H112 aluminum plates with accurate thickness measurements, various alloy options, and completely customized sizes to fit different heavy industry requirements around the world.
Need a quick price check?
We supply 5A06, 5083, and other marine grades cut to your exact sizes. Send us your requirements today and get a detailed quote within 24 hours.
5A06-H112 aluminum Chemical Composition (%)
The high magnesium (Mg) content is the core reason for 5A06's high strength and corrosion resistance.
| Element | Minimum (%) | Maximum (%) |
| Magnesium (Mg) | 5.80 | 6.80 |
| Manganese (Mn) | 0.50 | 0.80 |
| Iron (Fe) | - | 0.40 |
| Silicon (Si) | - | 0.40 |
| Zinc (Zn) | - | 0.20 |
| Copper (Cu) | - | 0.10 |
| Titanium (Ti) | 0.02 | 0.10 |
| Aluminum (Al) | Remainder | Remainder |
5A06-H112 aluminum Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength (Rm) | ≥ 315 MPa |
| Yield Strength (Rp0.2) | ≥ 155 MPa |
| Elongation (A50mm) | ≥ 15% |
| Density | 2.64 g/cm³ |
Specification of 5A06-H112 Aluminum Plate
| Parameter | Specification | |
|---|---|---|
| Alloy Grade | 5A06 | |
| Equivalent Grades | UNS A95A06, ISO AlMg6, Aluminium 5A06, AA5A06, Al5A06 | |
| Temper | H112 (O, H111, H32 available upon request) | |
| Thickness | 3 mm – 200.0 mm | |
| Width | 100 mm – 2500 mm | |
| Length | 1000 mm – 12000 mm | |
| Standard | ASTM B209 / GB/T 3880 / EN 485 | |
| Regular width | 1220mm/1250mm/1500mm/2000mm/2200mm/2500mm | |
| Tolerance | Meets or exceeds international standards | |
| Surface Finish | Mill finish, smooth, flat, free from oil stains, scratches, and oxidation | |
5A06-H112 Aluminum Machining and Processing Performance
Understanding how 5A06-H112 behaves during manufacturing is critical for your production line.
- Weldability (Excellent): This is a standout feature of 5A06. It performs exceptionally well with standard welding methods like TIG (Tungsten Inert Gas) and MIG (Metal Inert Gas) welding. The weld seam retains high strength and does not easily crack. ER5183 welding wire is typically recommended.
- Corrosion Resistance (Excellent): The alloy naturally forms a dense oxide layer. It is highly resistant to seawater, industrial chemicals, and atmospheric corrosion, eliminating the need for frequent painting or maintenance.
- Formability (Good): In the H112 temper, it retains enough ductility for standard bending and forming, though it is stiffer than lower-magnesium alloys like 5052.
- Machinability (Fair to Good): Because it is a non-heat-treatable, relatively soft alloy compared to the 7000 series, high-speed steel or carbide tools with generous rake angles and plenty of coolant are recommended to avoid continuous chip buildup.
Core Applications of 5A06-H112 Aluminum Plate
Due to its specific blend of low weight, high structural strength, and rust resistance, 5A06 is the material of choice for demanding environments.
- Shipbuilding and Marine Engineering:
Used extensively for boat hulls, decks, superstructures, and offshore oil rig components. It can withstand constant exposure to saltwater without degrading.
- Pressure Vessels and Storage Tanks:
Its excellent weldability and strength make it perfect for manufacturing welded pressure vessels, chemical storage tanks, and pipelines.
- LNG (Liquefied Natural Gas) Equipment:
5A06 maintains its toughness and does not become brittle at extremely low cryogenic temperatures, making it suitable for LNG storage and transport.
- Transportation Equipment:
Used in railway tankers, truck trailers, and coal carriages. The lightweight nature of the aluminum plate increases vehicle payload capacity while reducing fuel consumption.
- Heavy Duty Welded Structures:
Applied in military equipment, armor plates, and structural components requiring a high strength-to-weight ratio.
Not sure if 5A06 is the right grade for your structural application?
Our technical team can help you compare mechanical properties and select the most cost-effective alloy for your specific blueprints.
Alloy Comparison: 5A06 vs. 5083 vs. 5052
To make an informed purchasing decision, it helps to understand how 5A06 compares to other common marine-grade aluminum plates.
Compared with 5083 aluminum, 5A06 offers a higher magnesium content (up to 6.8% vs. 4.9% in 5083). Because of this difference, 5A06 provides slightly higher tensile strength and fatigue resistance. While 5083 is the most common standard marine grade globally, 5A06 is often selected for more demanding structural applications where extra load-bearing capacity is required while maintaining the same excellent corrosion resistance.
Compared with 5052 aluminum, 5A06 is significantly stronger. 5052 has a lower magnesium content (around 2.5%), making it softer, easier to bend, and highly formable. 5052 is usually used for sheet metal parts, fuel tanks, and cabinets. If your project requires rigid structural support or heavy welding (like a ship hull), 5A06 is the far superior choice.
Why Choose GNEE as Your Aluminum Plate Supplier?
✔ Multi-Alloy Supply Capability
We do not just supply 5A06. GNEE supports a comprehensive range of aluminum grades, including 5083, 5086, 5052, 6061, and 7075. This enables our customers to consolidate their sourcing, saving time and shipping costs by loading mixed items into a single container.
✔ Flexible Size Customization & Tight Tolerances
Standard sizes don't always fit. We accept custom thickness, width, and length orders. We use high-precision cutting equipment to ensure diagonal tolerances and thickness accuracy, which directly reduces your secondary machining time and material waste.
✔ Strict Quality Control
Heavy aluminum plates are prone to internal porosity if not cast properly. GNEE implements rigorous quality checks. All thick plates undergo Ultrasonic Testing (UT) to guarantee there are no internal cracks, bubbles, or inclusions.
✔ Mill Test Certificate (MTC) Provided
Full material traceability is guaranteed. We provide the EN 10204 3.1 Mill Test Certificate with every shipment, detailing the actual chemical composition and mechanical test results of your specific batch.
✔ Export-Standard Anti-Moisture Packaging
White rust (corrosion during sea freight) is a common issue when buying aluminum. GNEE uses strict export packaging:
- Plates are interleaved with craft paper.
- Wrapped tightly in thick waterproof plastic film.
- Secured with steel straps on robust, fumigated wooden pallets.
- Desiccants are added to absorb moisture during long ocean transits.
About GNEE Factory & Supply Capacity
GNEE is a leading professional aluminum manufacturer and global supplier located in China. We specialize in marine-grade and aerospace-grade aluminum plates, coils, and foils.
- Production Lines: Equipped with advanced hot rolling mills, cold rolling mills, and continuous annealing furnaces.
- Monthly Output: Over 8,000 tons, ensuring we can handle bulk orders without delays.
- Lead Time: 7–25 days, depending on whether you require standard stock sizes or custom-rolled specifications.
- Global Reach: We have successfully exported to over 60 countries across Southeast Asia, the Middle East, Europe, and South America.
We focus on long-term partnerships, providing one-stop metal sourcing solutions with transparent pricing and reliable delivery.
Get a Free, No-Obligation Quote Today
Ready to start your project? Tell us your required alloy grade, temper, thickness, dimensions, and total quantity.
Our dedicated export team will respond within 24 hours with a competitive CIF/FOB price, estimated lead time, and shipping details. We support factory video inspections for your peace of mind.
