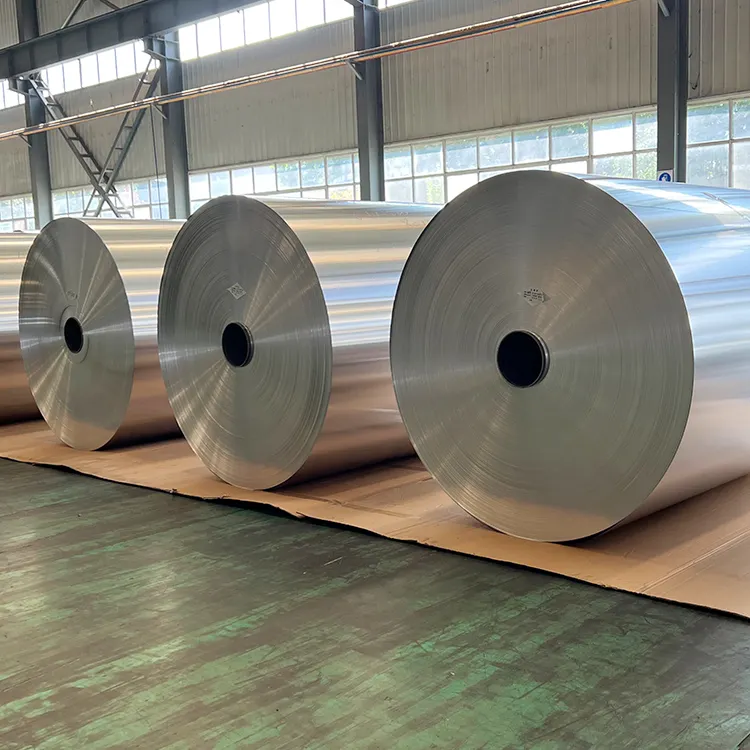

1060 aluminum foil jumbo roll is a large roll of aluminum foil made from 1060 aluminum alloy. 1060 aluminum alloy belongs to the pure aluminum series, with an aluminum content of 99.6%, making it one of the common industrial pure aluminums. Here is a detailed introduction to 1060 aluminum foil jumbo roll:
Main Characteristics:
High Purity: 1060 aluminum foil has a very high aluminum content, providing excellent electrical and thermal conductivity.
Softness: Due to its high purity, 1060 aluminum foil is very soft, making it easy to process and form.
Corrosion Resistance: 1060 aluminum has excellent corrosion resistance, especially suitable for humid environments.
Formability: 1060 aluminum foil is easy to shape and weld, making it suitable for various deep processing needs.
Homepage ꄲ 1060 Aluminum Foil
1060 Aluminum foil has high plasticity, corrosion resistance, electrical conductivity and thermal conductivity, it's widely used in the production of gaskets, auto parts, capacitors, food packaging, electronic labels and other industries .
Advantages of GNEE's 1060 aluminum foil:
1. O-state annealing, reaching A level of brushing water.
2. Strictly controls the layout, and the foil produced has no defects such as black spots, scratches, bright lines, and roll printing.
3. Food-grade aluminum foils have the advantages of non-toxicity, corrosion resistance, moisture resistance, and high temperature sterilization.
4. In the process of transportation and packaging, moisture-proof and effectively avoid oxidation.
|
Type |
1060 |
|
Temper |
O,H22,H24 |
|
Thickness(mm) |
0.006-0.2 |
|
Width(mm) |
100-1600 |
|
Length(mm) |
C |
|
Application |
Food Packaging, Capacitors, Gaskets, Electronic Tag, etc. |
Mechanical Properties with Different Tempers
Mechanical properties of 1060 aluminum foil vary significantly depending on the temper (i.e., the thermal and mechanical treatment applied).
Common tempers include O (annealed), H18 (full hard), and H22 (1/4 hard).
| Temper | Tensile Strength (MPa) | Elongation (%) | Yield Strength (MPa) |
| O (annealed) | 60–95 | ≥ 25 | ≤ 30 |
| H22 | 110–130 | 4–8 | 90–115 |
| H24 | 120–140 | 3–5 | 100–120 |
| H18 (full hard) | ≥ 150 | ≤ 2 | ≥ 140 |
O temper is soft and highly malleable, used for forming-intensive processes such as food packaging or cable wrapping.
H18 offers maximum strength and stiffness, suitable for rigid insulation or structural laminate backings.
H22/H24 tempers provide a balance between formability and mechanical strength, often chosen for household foil and electronics.
Comparison with Other 1100 1050 1070 Series Aluminum Alloys
Within the 1xxx series, several grades such as 1050, 1070, and 1100 are commonly used.
However, 1060 offers a balanced profile that makes it a preferred choice in many technical settings:
| Grade | Al Purity (%) | Electrical Conductivity (% IACS) | Key Advantage |
| 1050 | ≥ 99.50 | ~61 | Slightly better flexibility |
| 1060 | ≥ 99.60 | ~61.8 | Best balance of conductivity, corrosion resistance, and formability |
| 1070 | ≥ 99.70 | ~62 | Highest conductivity in the series |
| 1100 | ≥ 99.00 | ~60 | Improved mechanical strength |
Compared to 1050, 1060 aluminum foil has slightly higher purity, which results in better conductivity and corrosion resistance while maintaining sufficient strength for foil rolling.
While 1070 offers marginally better electrical properties, its higher cost makes 1060 more attractive for large-scale commercial use.
What is the meaning of 1060 H14
1060 represents the alloy composition, which can be considered as the grade of aluminum;
H14 is the heat treatment state of the aluminum alloy. The same alloy composition has different heat treatment states, and its mechanical properties are different;
Aluminium 1060 chemical composition
| Alloy | Al(%) | Si (%) | Cu (%) | Mg(%) | Zn (%) | Mn(%) | Ti(%) | V (%) | Fe(%) |
| 1060 | 99.60 | 0.25 | 0.05 | 0.03 | 0.05 | 0.03 | 0.03 | 0.05 | 0.350 |
1060 aluminium alloy properties
| Property | Value in metric unit | Value in US unit | ||
| 1060 Aluminium alloy density | 2.705 *10³ | kg/m³ | 169 | lb/ft³ |
|---|---|---|---|---|
| Modulus of elasticity | 69 | GPa | 10000 | ksi |
| Thermal expansion (20 ºC) | 23.6*10-6 | ºCˉ¹ | 13.1*10-6 | in/(in* ºF) |
| Specific heat capacity | 900 | J/(kg*K) | 0.215 | BTU/(lb*ºF) |
| Thermal conductivity | 231 | W/(m*K) | 1600 | BTU*in/(hr*ft²*ºF) |
| Electric resistivity | 2.81*10-8 | Ohm*m | 2.81*10-6 | Ohm*cm |
| Tensile strength (annealed) | 69 | MPa | 10000 | psi |
| Yield strength (annealed) | 28 | MPa | 4000 | psi |
| Elongation (annealed) | 43 | % | 43 | % |
| Shear strength (annealed) | 48 | MPa | 7000 | psi |
| Fatigue strength (annealed) | 21 | MPa | 3000 | psi |
| Hardness (annealed) | 19 | HB | 19 | HB |
| Tensile strength (H16) | 110 | MPa | 16000 | psi |
| Yield strength (H16) | 103 | MPa | 15000 | psi |
| Elongation (H16) | 8 | % | 8 | % |
| Shear strength (H16) | 69 | MPa | 10000 | psi |
| Fatigue strength (H16) | 45 | MPa | 6500 | psi |
| Hardness (H16) | 30 | HB | 30 | HB |
| Annealing temperature | 343 | ºC | 650 | ºF |
Aluminium 1060 equivalent
It is fundamentally very similar to 1050 aluminium alloy, with the difference coming down to 0.1% aluminium by weight. However, while both 1050 and 1060 are covered by the same ISO standard, they are covered by different ASTM standards.
| ASTM B209 | ASTM B210 | ASTM B211 | ASTM B221 |
| ASTM B234 | ASTM B241 | ASTM B345 | ASTM B361 |
| ASTM B404 | ASTM B483 | ASTM B548 | SAE J454 |
| UNS A91060 |
Alternative names include Al99.6 and A91060. It is described in the following standards:
ASTM B 209: Standard Specification for Aluminum and Aluminum Alloy Sheet and Plate
ASTM B 210: Standard Specification for Drawn Seamless Tubing of Aluminum and Aluminum Alloys
ASTM B 211: Standard Specification for Aluminum and Aluminum Alloy Bar, Rod, and Wire
ASTM B 221: Standard Specification for Aluminum and Aluminum Alloy Extruded Rods, Rods, Wire, Shapes, and Tubes
ASTM B 483: Standard Specification for Aluminum and Aluminum Alloy Drawn Tubing for General Applications
ISO 6361: Wrought aluminum and aluminum alloy sheet, strip and plate
